JAMB LINER Assembly 74" to 86" Length - Black Blue White Clutch TILT PAC Double Hung D/H & Single Hung S/H

TILT PAC Double Hung D/H & Single Hung S/H JAMB Hardware Assemblies ( PAIR )

NEED HELP? Info@windowpartsdoorparts.com

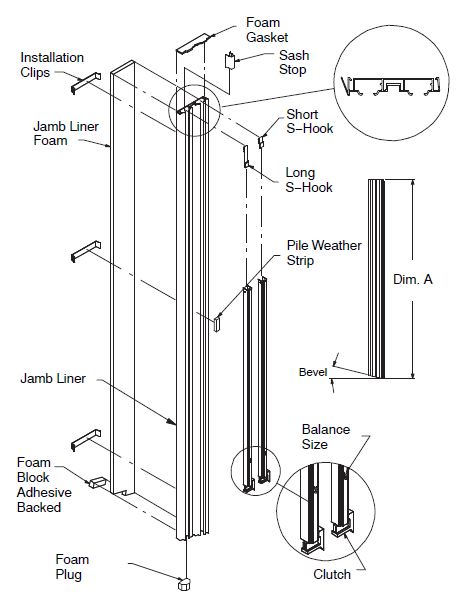

ORDERING REPLACEMENT JAMB HARDWARE FOR E−ZTILT DH/SH TILT PAC (ALSO USED ON DOUBLE HUNG UNITS MANUFACTURED BEFORE APRIL OF 1986.) - Replacement jamb hardware assemblies complete include a pair of clip mount vinyl jamb liners, jamb liner foam, foam plugs, foam gaskets, pile weather strip, adhesive backed foam block, sash stops, installation clips, S−hooks and balance tubes.

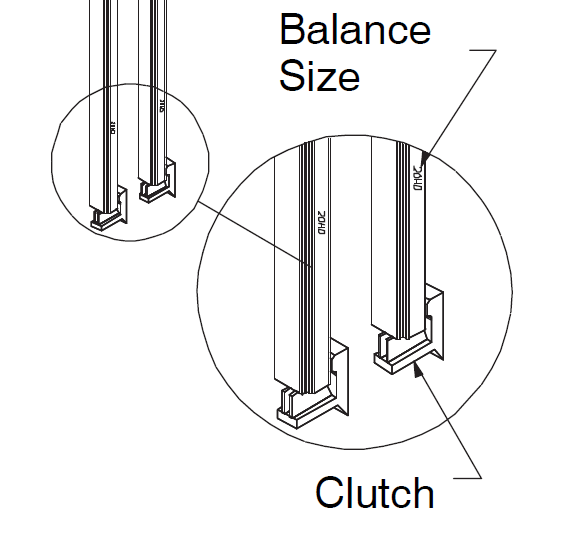

NOTE: Jamb liners are sold in pairs; Jamb Hardware Assemblies Complete for standard Tilt Pacs may be ordered by part number. See charts below. Jamb Hardware Assemblies complete for special Tilt Pacs, please include the following information: 1. Provide any original order numbers if available. 2. Specify type of Tilt Pac, (DH or SH). 3. Specify clip mount. 4. Specify color of liner (beige or white). 5. Provide length (see dimension A) ir glass height (s). 6. Provide balance size(s)* The balance size is imprinted on the tube, (see illustration). 7. Provide sill bevel. (Standard bevel is 14 Degrees ). NOTE: Special bevel jamb liners are shipped long to be trimmed in the field. * If the balances are oversized, a balance size may not be available. In this case, provide the glass width, height and makeup.

HEAVY DUTY (BLACK CLUTCH) and EXTRA HEAVY DUTY (BLUE CLUTCH) Glass Height (one sash) Part Numbers White Part Numbers Beige Glass Height (one sash) Part Numbers White Part Numbers Beige 12" Pair 14" Pair 10595012 10595014 10590312 10590314 16" Pair 18" Pair 10601516 10601518 10601116 10601118 16" Pair 18" Pair 10595016 10595018 10590316 10590318 20" Pair 22" Pair 10601520 10601522 10601120 10601122 20" Pair 22" Pair 10595020 10595022 10590320 10590322 24" Pair 24/36" Pair* 10601524 10601525 10601124 10601137 24" Pair 24/36" Pair* 10595024 10595025 10590324 10590337 26" Pair 28" Pair 10601526 10601528 10601126 10601128 26" Pair 28" Pair 10595026 10595028 10590326 10590328 30" Pair 32" Pair 10601530 10601532 10601130 10601132 30" Pair 32" Pair 10595030 10595032 10590330 10590332 34" Pair 36" Pair 10601534 10601536 10601134 10601136 34" Pair 36" Pair 10595034 10595036 10590334 10590336 38" Pair 40" Pair 10601538 10601540 10601138 10601140 40" Pair 10595040 10590340 42" Pair 44" Pair 10601542 10601544 10601142 10601144 46" Pair 48" Pair 10601546 10601548 10601146 10601148 * Glass height of top sash 24". Glass height of bottom sash 36". (all clutches black) * Glass height of top sash 24". Glass height of bottom sash 36". (all clutches blue)
