Marvin UDH D/H S/H Window Balances | 18" to 22" Length

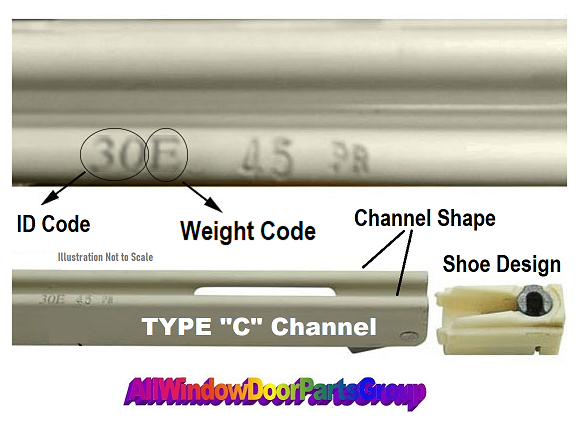

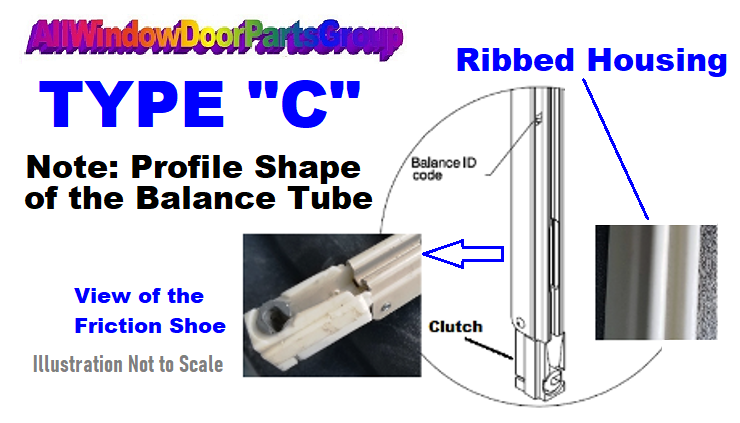

MARVIN WINDOW BALANCES - PRICED PER PAIR - WHITE, BEIGE and MILL FINISH | Available as Top or Bottom Sash Balance - PER PAIR (2) - 18" to 22" Lengths, UDH, ULTIMATE DOUBLE HUNG AND SINGLE HUNG WINDOW BALANCES. Balance tubes for standard units may be ordered by part number ( see Picture ) - To determine the part number, locate the ID code from the existing tube (see illustration below) and use the chart. Spring Balance Weights are designated by Codes - "AA" , "A", "B", "C", "D", "E", or "F"  as shown. Balance tubes for special sized units or insert units are not available by these part numbers, balance tubes for special sized units require all the following information:

1. Provide the Stamping ID Code in the comment section at checkout.

2. Provide Balance Color / Finish

3. Provide balance channel length (No Ends or Clips)

Mill Balance Tube Part Numbers, Top Sash Spring Weight, AA Spring Weight, A Spring Weight, B Spring Weight, C Spring Weight, D Spring Weight, E Spring Weight, F CN Part # CN Part #  10695416  18 10696618 18 10695018 18 10695118 18 10695218 18 10695318 18 10695418 20 10696620 20 10695020 20 10695120 20 10695220 20 10695320 20 10695420 22 10696622 22 10695022 22 10695122 22 10695222 22 10695322 22 10695422 22 10695522  10696416 18 10696718 18 10696018 18 10696118 18 10696218 18 10696318 18 10696418 20 10696720 20 10696020 20 10696120 20 10696220 20 10696320 20 10696420 − 22 10696722 22 10696022 22 10696122 22 10696222 22 10696322 22 10696422 22 10696522
