Marvin French Door Handle Replacements | Active Panel - Locking
Price: $0.00

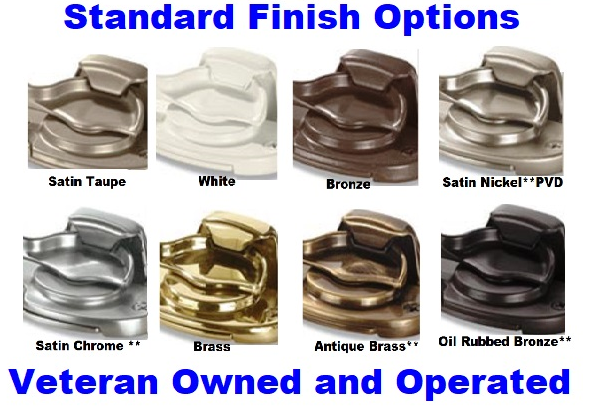

Marvin Inswing / Outswing / Door Replacement Handle Sets - Traditional Style Handle Set Assembly, Active (locking) Panel with a standard mortise lock or the MultiPoint Locking Systems. (Schlage “C” Keyway). FINISHES AVAILABLE: Satin Taupe, Antique Brass, White, Satin Chrome, Oil Rubbed Bronze, ORBZ PVD ( Oil Rubbed Bronze ), Brass PVD, Satin Nickel PVD, Dark Bronze and Polished Chrome. SEE DROP DOWN MENU BELOW FOR ALL OPTIONS.

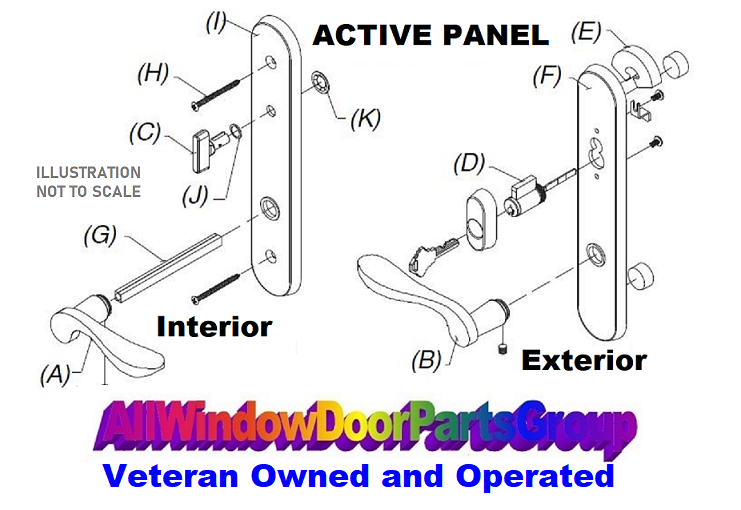

1 − Interior lever (A) with 00142006 spindle, escutcheon plate and hardware
1 − Exterior lever (B) with escutcheon plate and hardware
1 − Thumb turn (C) with hardware
1 − Keyed cylinder (D) with housing and hardware
1 − Exterior escutcheon plate gasket (E)
1 − Exterior escutcheon plate (F)
1 − Two-piece spindle (G)
2 − #10−32 x 2 1/8 Phillips oval head machine screws (H)
1 − Interior escutcheon plate (I)
1 − Thumb turn washer (J)
1 − Thumb turn push nut (K)
2 − Keys
SKU: 10830300 21448110
